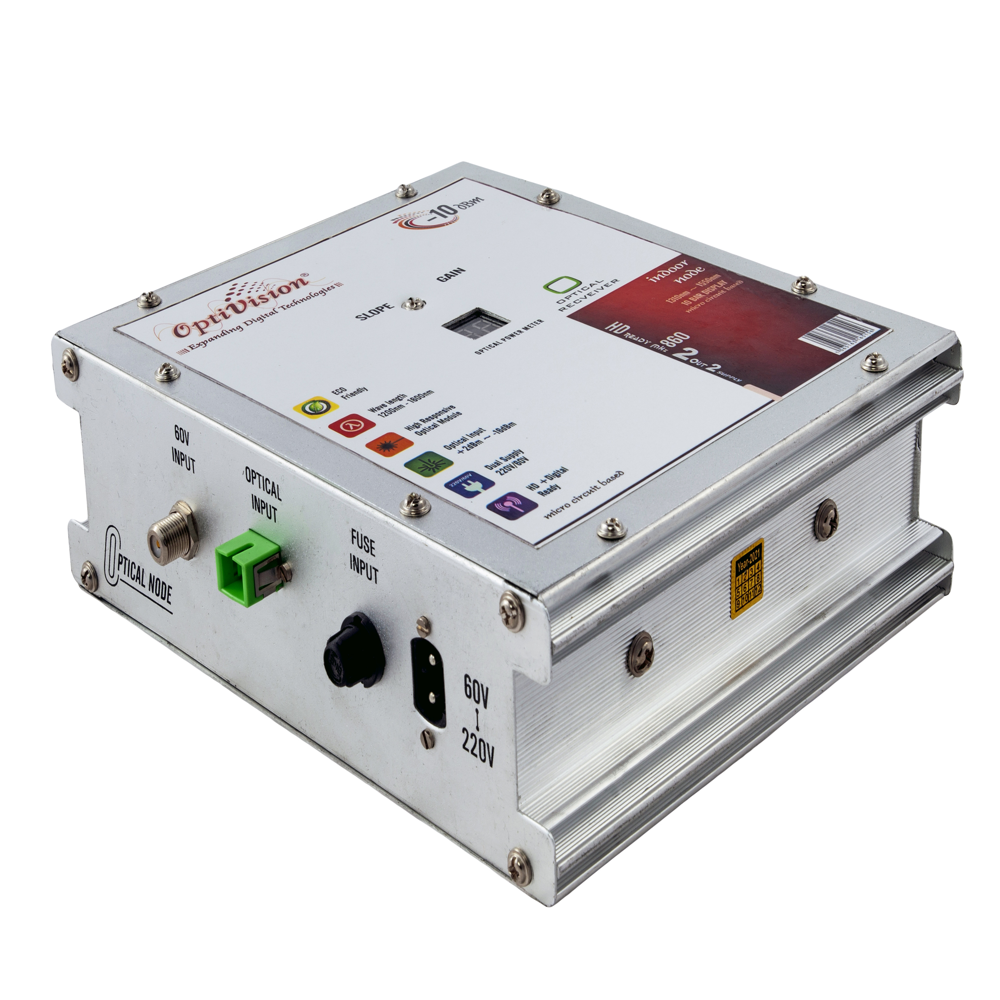

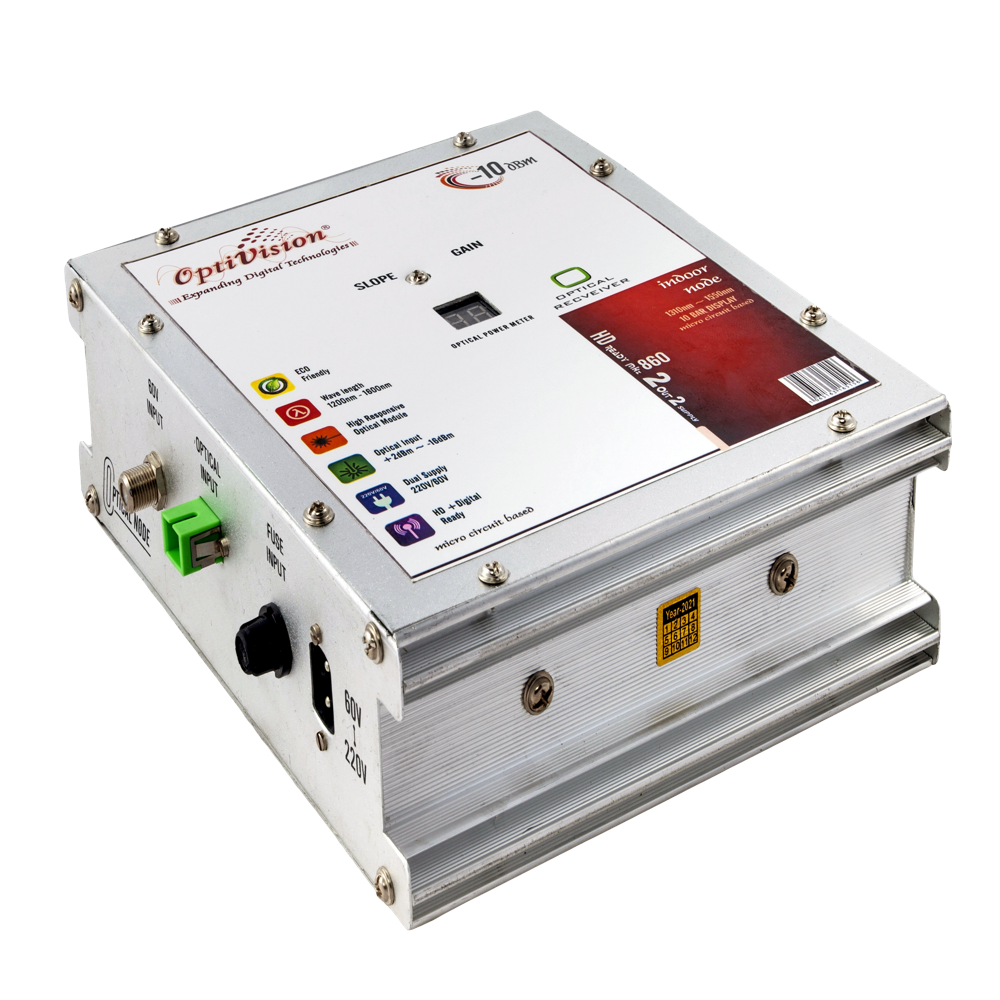

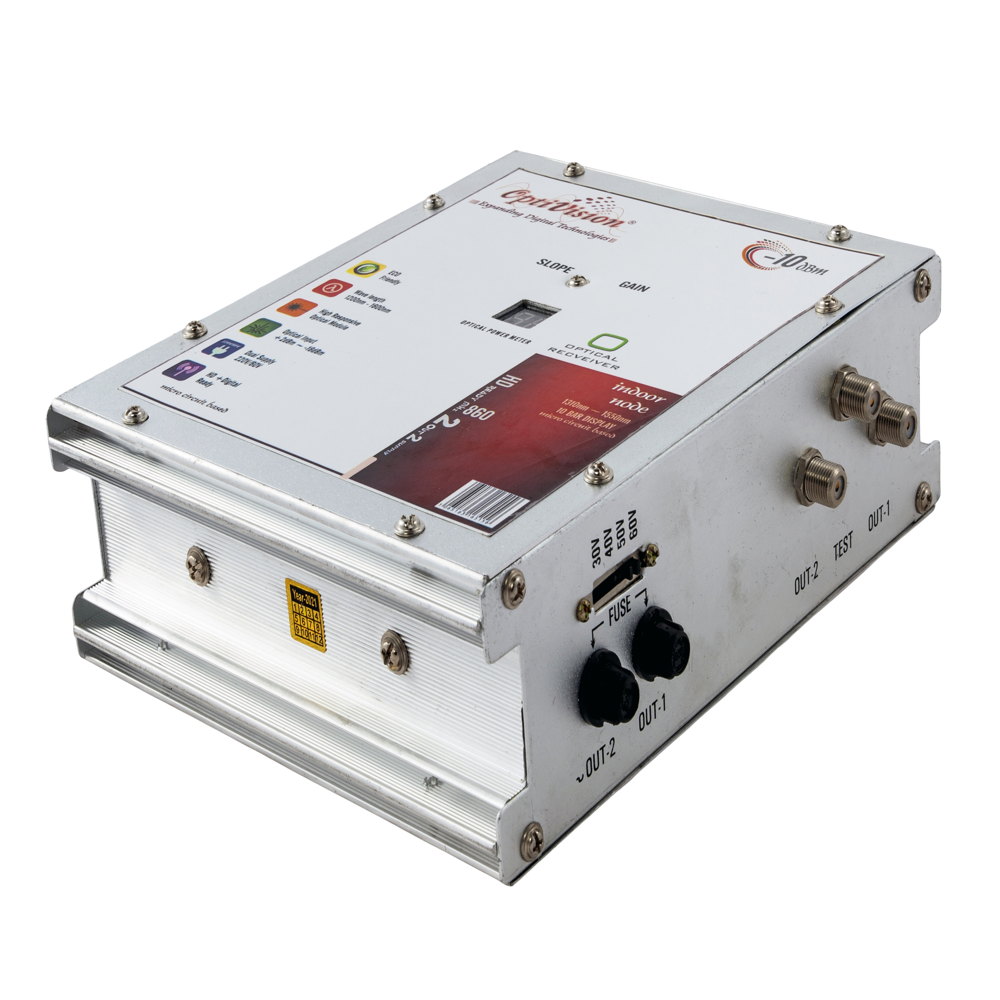

OPTICAL RECEIVER : OPM DELUXE : OV-9998

Model No.: OV-9998

1.General Overview

• Product Name: Optical Receiver with OPM Display

• Model Number: OV-9998

• Application: Designed for fiber optic communication systems to receive and monitor optical signals in real-time.

• Key Features:

  • Integrated Optical Power Meter (OPM) for real-time power monitoring.

  • High-sensitivity optical receiver.

  • Durable aluminium housing for robust performance.

  • Wide wavelength range and high dynamic range.

2.Optical Specifications

• Wavelength Range:

  • 1260 nm to 1650 nm (Full C, L, and O bands).

• Optical Input Power Range:

  • Minimum: -4 dBm

  • Maximum: -12 dBm

• Receiver Sensitivity:

  • Typical: -30 dBm (at BER 10).

• Optical Power Meter (OPM) Accuracy:

  • 0.5 dB (over full wavelength range).

• Display Resolution:

  • 0.01 dBm (for OPM display).

• Connector Type:

  • SC/APC or FC/APC (optional).

• Return Loss:

  • 45 dB.

3.Electrical Specifications

• Output Interface:

  • Analog output: 0-5 V DC (for optical power monitoring).

  • Digital output: RS-232 or USB (optional).

• Power Supply:

  • Input Voltage Mains : 200VAC-240VAC, 50/60 Hz.

  • Power Pass Voltage : 30-40-50-60VAC

• Power Consumption:

  • Typical: 5 W

  • Maximum: 8 W

4.Mechanical Specifications

• Housing Material:

  • High-grade aluminium for durability and heat dissipation.

• Operating Temperature:

• • 0C to +50C.

• Storage Temperature:

  • -20C to +70C.

• Relative Humidity:

  • 5% to 95% (non-condensing).

5.Optical Power Meter (OPM) Specifications

• Measurement Range:

  • -9 dBm to +2 dBm.

• Wavelength Calibration:

  • Pre-calibrated for 1310 nm, 1490 nm, 1550 nm, and 1625 nm.

• Measurement Units:

• • dBm

• Warranty:

• • 1 years limited warranty covering parts and labor.
