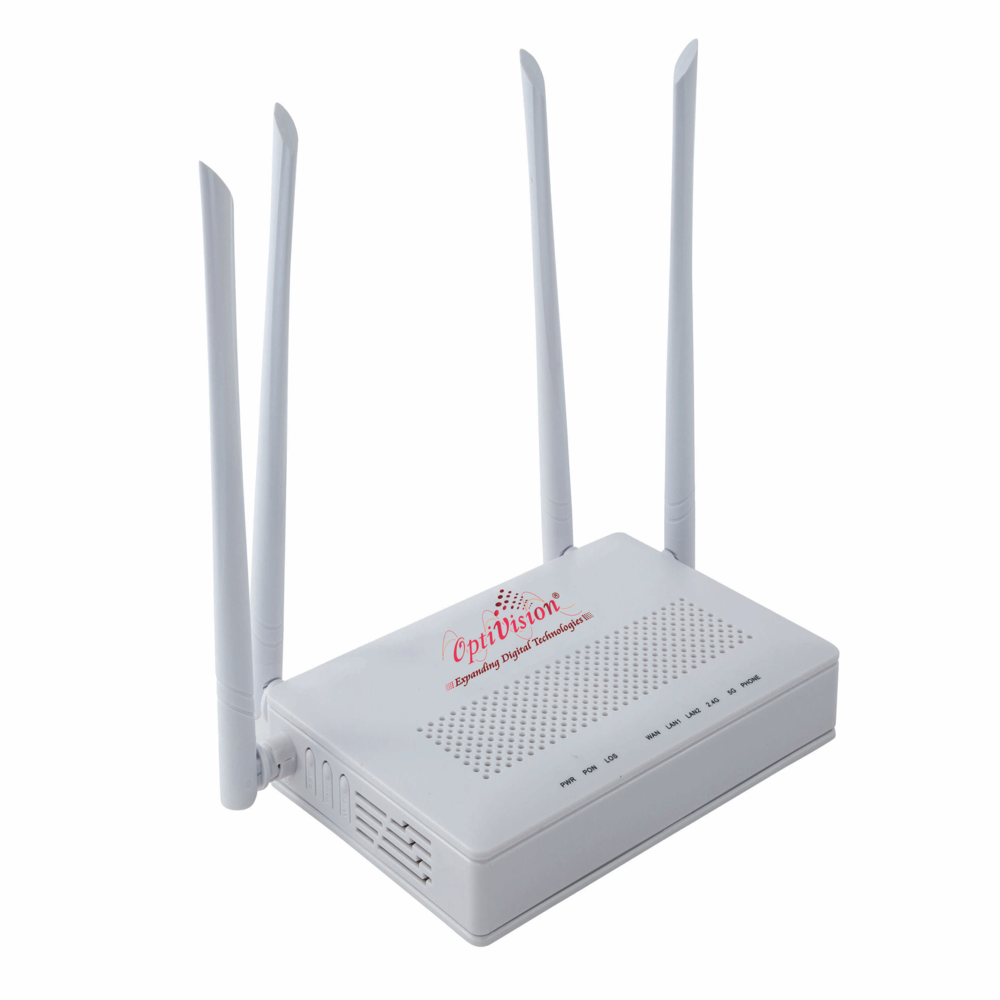

V-SOL DUAL BAND XPON AC ONT 2GE+1VOIP

Detect and exchange PON mode automatically.

Support EasyMesh protocol

WiFi5 Dual Band 1200Mbps Introduction: With FEM

IPv4/IPv6 Stack

Support SIP protocol

WiFi-FEM module

Introduction:

OPTIVISION (2GE+1POTS+WiFi5 XPON HGU ONT) is a broadband access device specially designed to meet the needs of fixed network operators for FTTH and triple play services. The ONT is based on high-performance chip solutions, supports XPON dual-mode technology (EPON and GPON), and also supports IEEE802.11b/g/n/ac WiFi technology and other Layer 2/Layer 3 functions, providing data service for carrier-grade FTTH applications. This ONU has a FEM module, which can improve the transmission power and reception sensitivity of WIFI, making the coverage of WIFI larger. In addition, the ONT also supports the OAM/OMCI protocol, and we can configure or manage various services of the ONT on the OLT. The ONT has high reliability, is easy to manage and maintain, and has QoS guarantees for various services. It conforms to a series of international technical standards such as IEEE802.3ah and ITU-T G.984.

OAM/OMCI,Telnet,WEB,TR069

Support full management of HGU functions by OLT

Support bridge, router & bridge/router mixed mode

QoS

Support 4 queues

Support SP, WRR, 802.1P and DSCP

Full speed non-blocking switching

2K MAC address table

8 full range VLAN ID

Support VLAN tag, untag, transparent, trunk, translation mode

Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc

Support auto polarity detection of Ethernet ports (AUTO MDIX)

Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy

Integrated 802.11b/g/n/ac

Authentication:WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES)

Modulation type:DSSS,CCK and OFDM

Encoding scheme:BPSK,QPSK,16QAM and 64QAM

Easymesh

VoIP :

SIP and IMS SIP

G.711a/G.711u/G.722/G.729 Codec

Echo cancellation,VAD/CNG,DTMF Relay

T.30/T.38 FAX

Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference

Line testing according to GR-909

IPv4, IPv6 and IPv4/IPv6 dual stack

DHCP/PPPOE/Static

Static route, DHCP Server

NAT/DMZ/DDNS/Virtual Server

Security :

Support Firewall

Support Mac filter Based on MAC or URL

Support ACL

1XPON port(EPON PX20+ & GPON Class B+)

SC single mode, SC/UPC connector

TX optical power: 0+4dBm

RX sensitivity: -27dBm

Overload optical power: -3dBm(EPON) or  8dBm(GPON)

Transmission distance: 20KM

Wavelength: TX 1310nm, RX1490nm

Compliant with IEEE802.11b/g/n/ac

2.4GHz: 2.4000-2.4835GHz; 5.0GHz: 5.1505.825GHz

WiFi:2.4GHz 22, 5.8GHz 22, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID

TX power: 2.4GHz: 23dBm; 5GHz: 27dBm

RX power: 2.4GHz: HT40-MCS7 -72dBm, 5GHz: VHT80 MCS9 <-63dBm

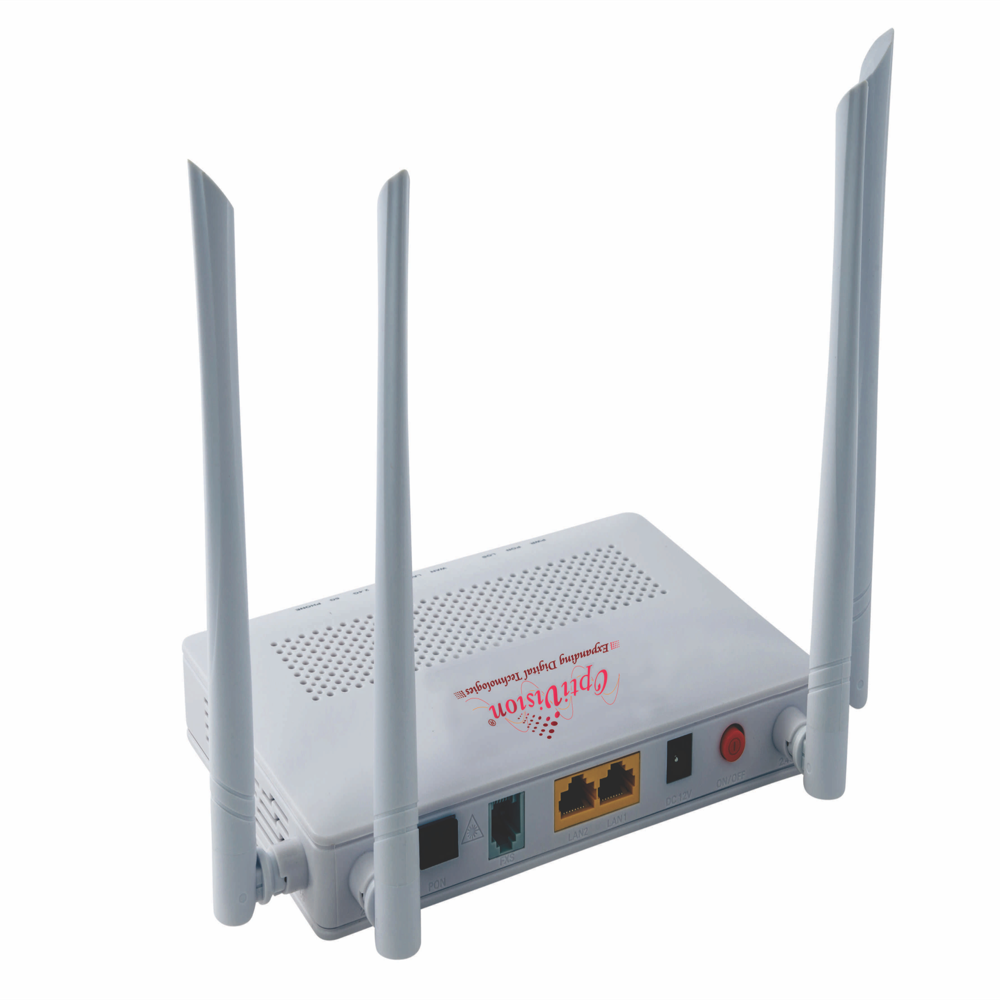

2*GE, Auto-negotiation RJ45 connectors

1*FXS, RJ11 connector

Dimension : 178mm120mm30mm(LWH)

Net weight : 0.3KG

Operating condition : Operating temp: -10 +55C Operating humidity:5 95% (non-condensing)

Storing condition : Storing temp: -40 +70C Storing humidity: 5 95%  (non-condensing)

Power adapter : DC 12V,1.5A, external AC-DC power adaptor

Power supply :  10W

Interface :  2GE+1POTS+WiFi5

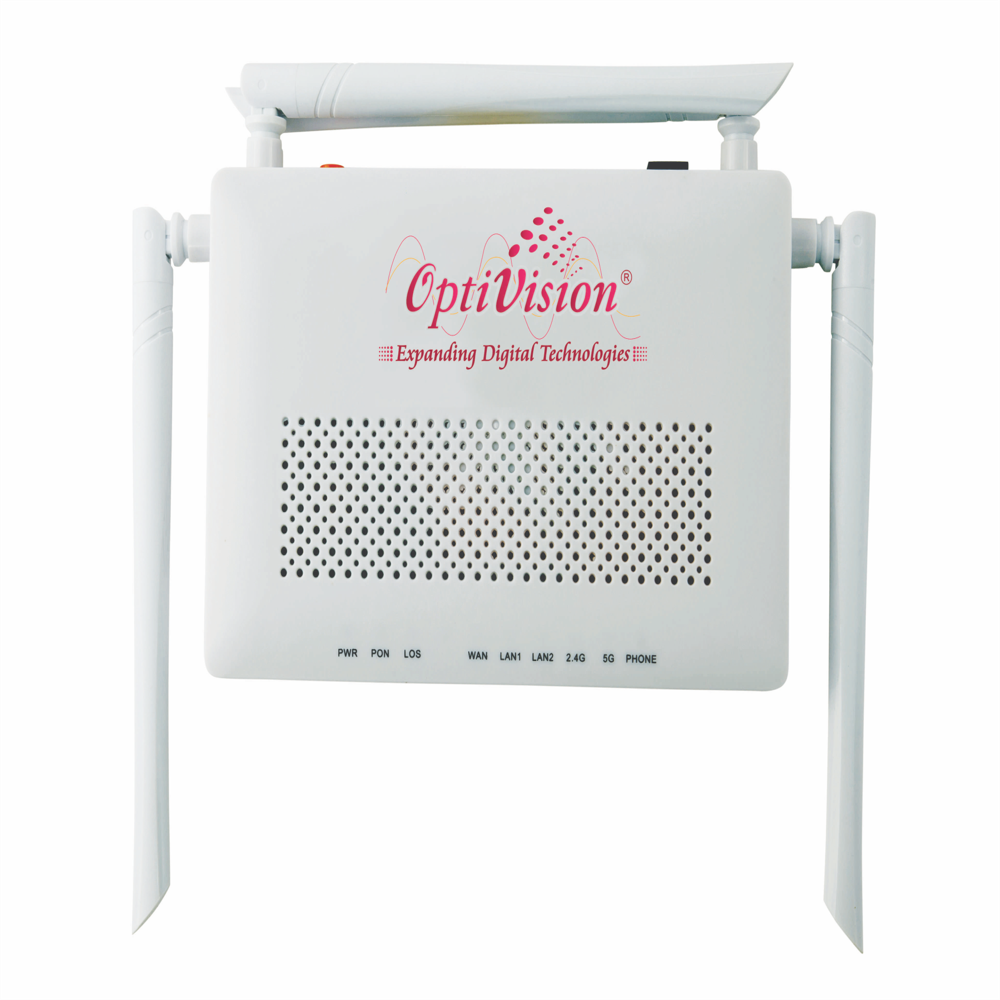

Indicators : PWR, PON, LOS, 2.4G, 5G, PHONE
