OPTICAL RECEIVER with BATTERY : OV-2608

About OPTICAL RECEIVER with BATTERY : OV-2608

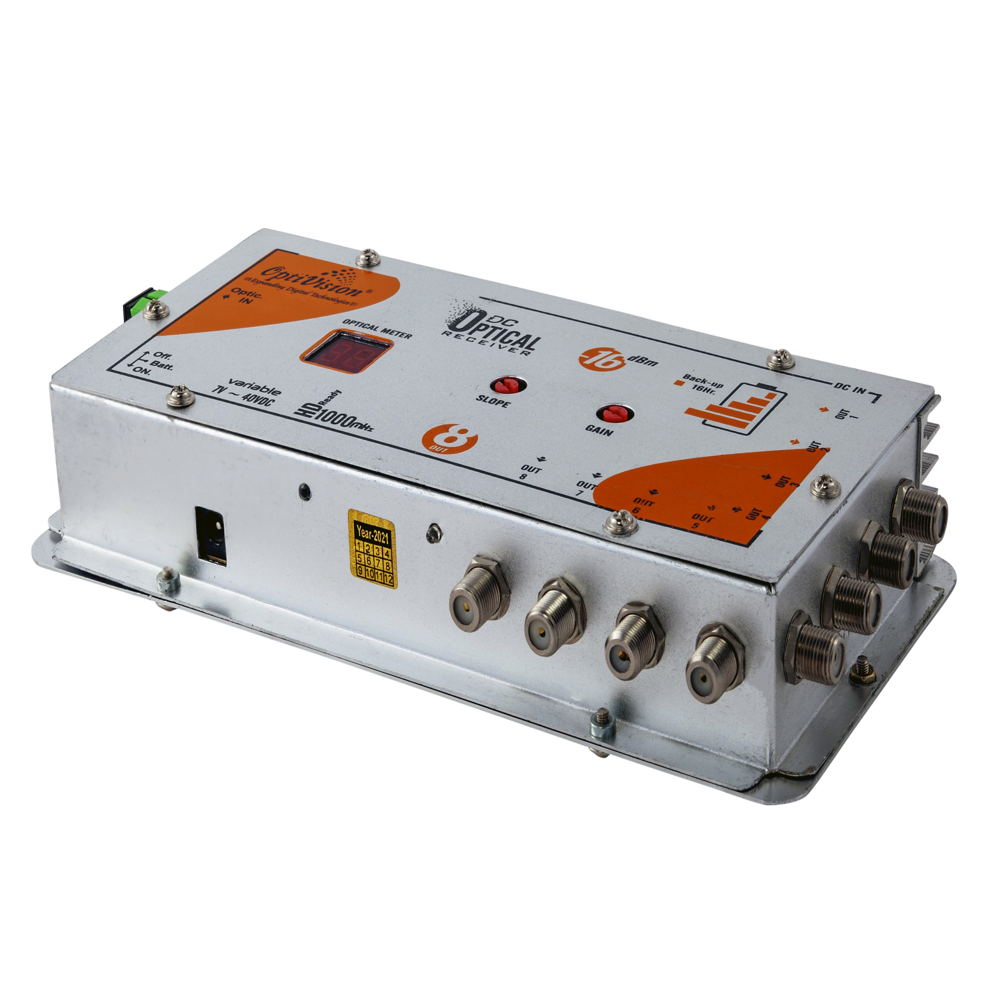

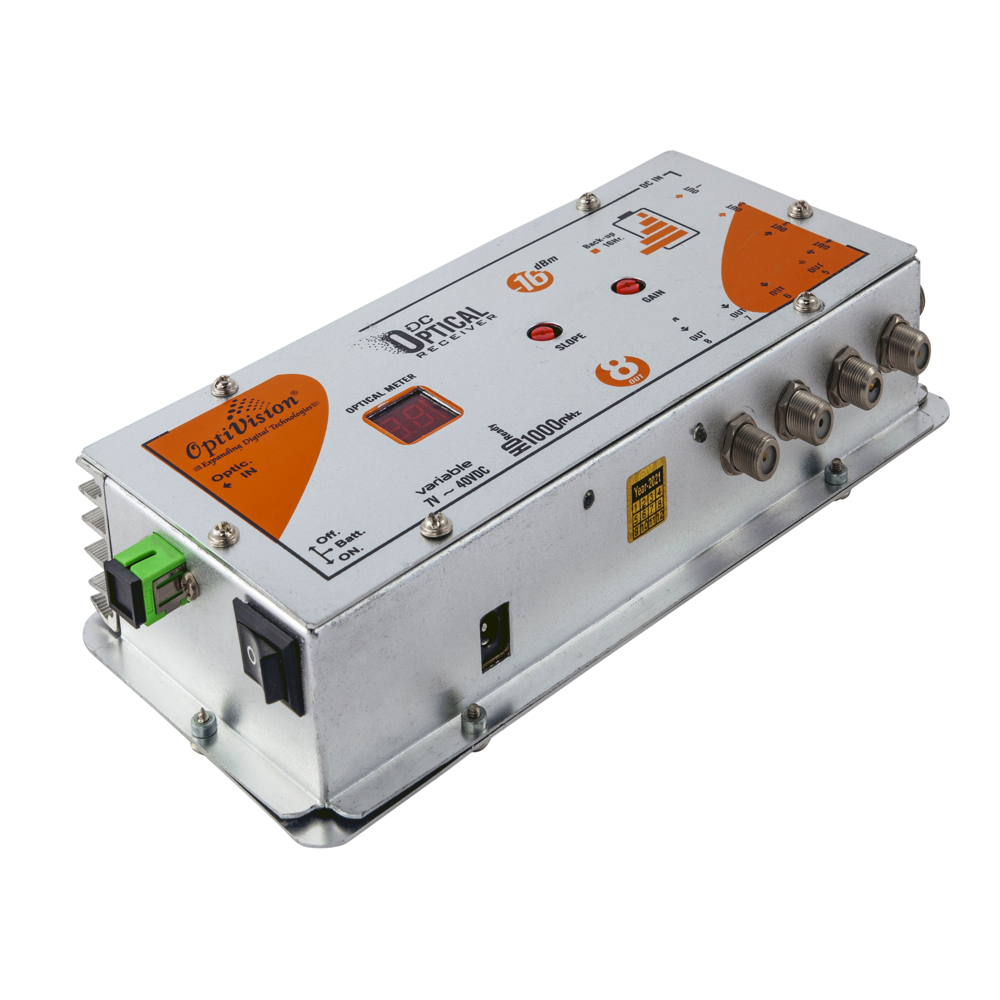

Optivision Model no.2608 is battery Back-up (16hr.) and variable 7VDC - 40VDC operated, low power consumption with high-output, high-performance, full-featured CATV optical node designed very latest SMD Technology to provide reliable deliver a full performance of multiplexed video. The unit is constructed with high quality components to enable it to meet or exceed its performance.  This unit can be operate via multi-power supply i.e : POC /Solar-Pannel/ 12VDC Power Adaptor / 35VDC Power supply. The unit have powder coated housing for rust free. This node have OPM.

Model No.: OV-2608

  General Overview

• Product Name: Optical Receiver with Battery Backup & OPM Display

• Model Number: OV-2608

• Application: Designed for CATV fiber optic communication systems to receive and monitor optical signals in real-time, with battery backup for uninterrupted operation.

• Key Features:

  • Integrated Optical Power Meter (OPM) for real-time power monitoring.

  • High-sensitivity optical receiver.

  • Durable aluminium housing for robust performance.

  • Built-in battery backup for up to 9 hours of operation.

  • Wide wavelength range and high dynamic range.

   Optical Specifications

• Wavelength Range:

  • 1260 nm to 1650 nm (Full C, L, and O bands).

• Optical Input Power Range:

  • Minimum: -4 dBm

  • Maximum: -12 dBm

• Receiver Sensitivity:

  • Typical: -15 dBm (at BER 10).

• Optical Power Meter (OPM) Accuracy:

  • 0.5 dB (over full wavelength range).

• Display Resolution:

  • 0.01 dBm (for OPM display).

• Connector Type:

  • SC/APC or FC/APC (optional).

• Return Loss:

  • 45 dB.

• Power Supply:

  • DC Voltage: +12 VDC (optional).

• Battery Backup:

  • Built-in rechargeable lithium-ion battery.

  • Backup Time: Up to 9 hours (under typical operating conditions).

  • Charging Time: 6-8 hours (fully charged).

• Power Consumption:

  • Typical: 5 W

  • Maximum: 8 W

• Mechanical Specifications

• Housing Material:

  • High-grade aluminium for durability and heat dissipation.

• Mounting Options:

• • Desktop or rack-mountable (optional rack-mount kit).

• Operating Temperature:

  • 0C to +50C.

• Storage Temperature:

  • -20C to +70C.

• Relative Humidity:

  • 5% to 95% (non-condensing).

5. Optical Power Meter (OPM) Specifications

• Measurement Range:

  • -9 dBm to +2 dBm.

• Wavelength Calibration:

  • Pre-calibrated for 1310 nm, 1490 nm, 1550 nm, and 1625 nm.

• Measurement Units:

• • dBm

• Battery Backup Specifications

• Battery Type:

  • Rechargeable lithium-ion battery.

• Battery Capacity:

  • 2600 mAh (typical).

• Backup Time:

  • Up to 9 hours (depending on load and operating conditions).

• Battery Life:

  • 500 charge cycles (with 80% capacity retention).

• Battery Indicators:

  • LED indicators for battery status (charging, fully charged, low battery).
