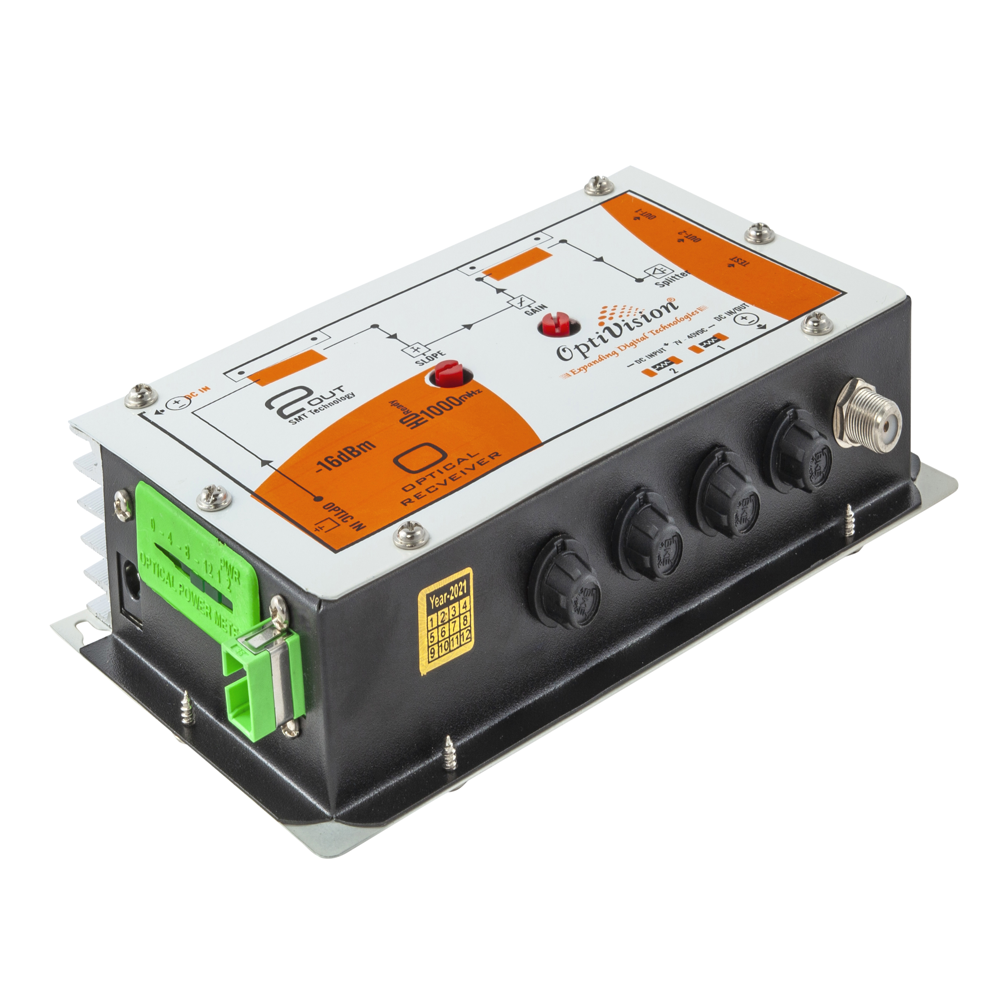

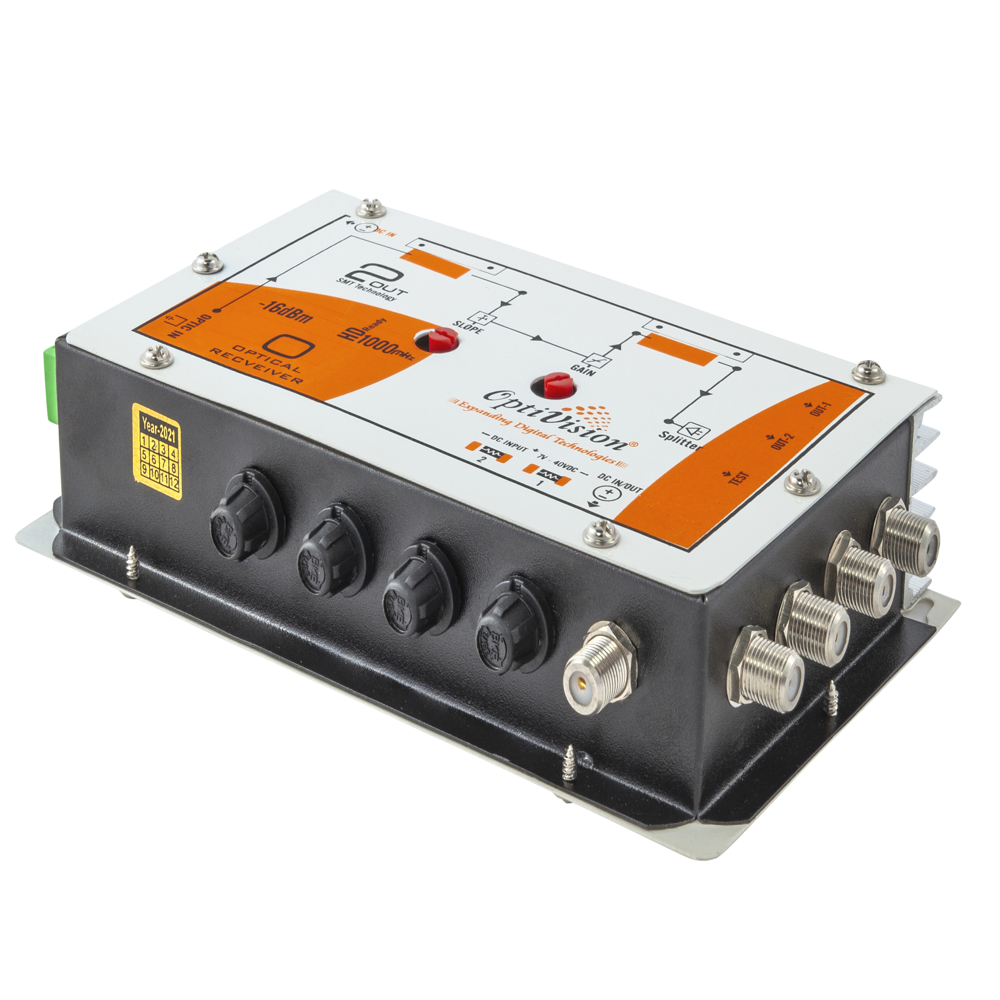

DC OPTICAL RECEIVER : OV-2052

Model No.: OV-2052

1. General Overview

• Product Name: DC Optical Receiver (2 Output)

• Model Number: OV-2052

• Application: Designed for CATV fiber optic communication systems to convert optical signals into electrical signals with dual output capability.

• Key Features:

  • Dual RF output for signal distribution.

  • High-sensitivity optical receiver.

  • Compact and robust design.

  • Wide wavelength range and high dynamic range.

  • High MER-BER

2. Optical Specifications

• Wavelength Range:

  • 1260 nm to 1650 nm.

• Optical Input Power Range:

  • Minimum: -5 dBm

  • Maximum: -12 dBm

• Receiver Sensitivity:

  • Typical: -10 dBm (at BER 10).

• Optical Connector Type:

  • SC/APC or FC/APC (optional).

• Return Loss:

  • 45 dB.

3. Electrical Specifications

• Output Interface:

  • Dual RF output ports (F-type connectors).

  • Output Frequency Range: 47 MHz to 1000 MHz.

  • Output Impedance: 75 .

• Output Level:

  • Typical: 108 dBV (at 0 dBm optical input).

• Flatness:

  • 1.5 dB (over full frequency range).

• Power Supply:

  • Input Voltage: 12 VDC.

  • Power Consumption:

    • Typical: 5 W

    • Maximum: 8 W

• 4. Mechanical Specifications

• Housing Material:

  • High-grade Metal for durability and heat dissipation.

• Weight:

• • Net Weight: 0.6 kg

  • Gross Weight: 0.8 kg (with packaging).

• Operating Temperature:

• • 0C to +50C.

• Storage Temperature:

  • -20C to +70C.

• Relative Humidity:

  • 5% to 95% (non-condensing).

5. Performance Specifications

• Carrier-to-Noise Ratio (CNR):

  • 50 dB (typical at 0 dBm optical input).

• Composite Second Order (CSO):

  • < -65 dBc (typical at 0 dBm optical input).

• Composite Triple Beat (CTB):

  • < -65 dBc (typical at 0 dBm optical input).

 6. Ordering Information

• Base Unit: DC Optical Receiver (2 Output) (Model No. OV-2052).

• Optional Accessories:

  • Rack-mount kit.

  • Additional power supply units.

  • Remote monitoring software.

• Warranty:

  • 1 years limited warranty covering parts and labor.
