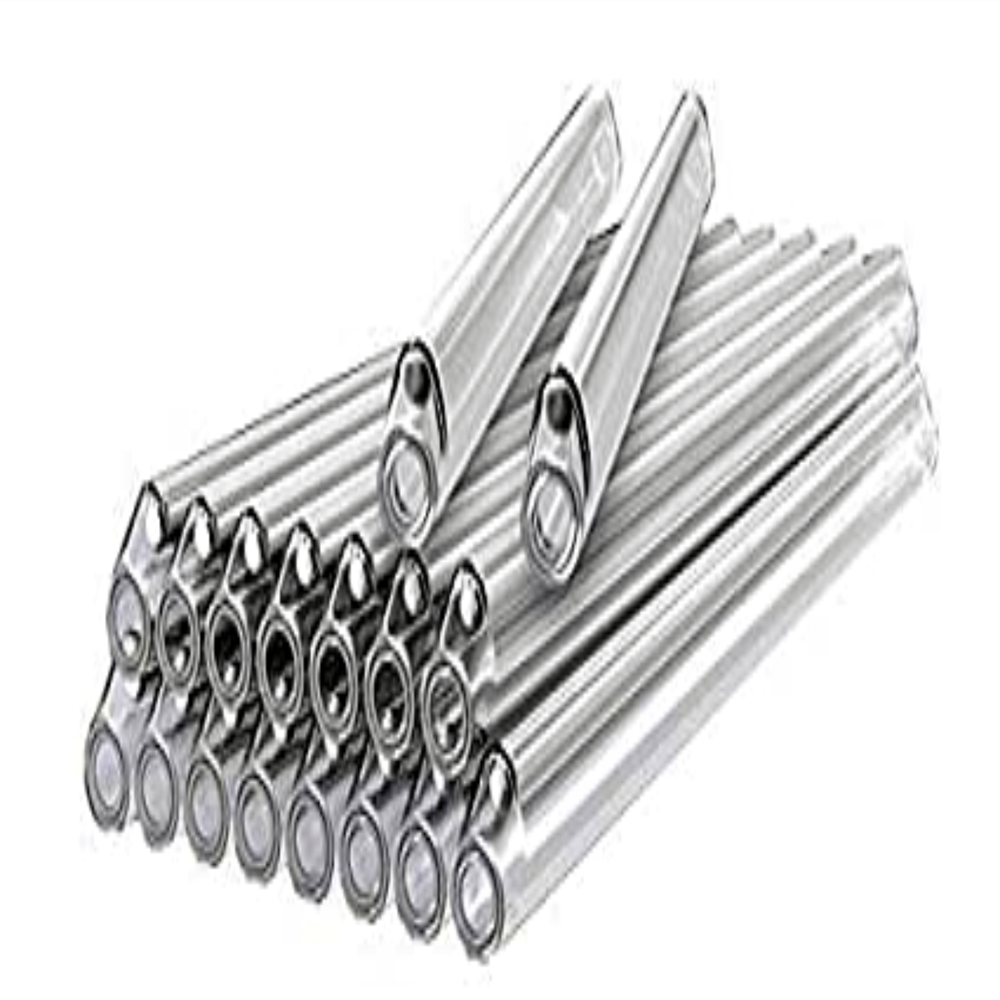

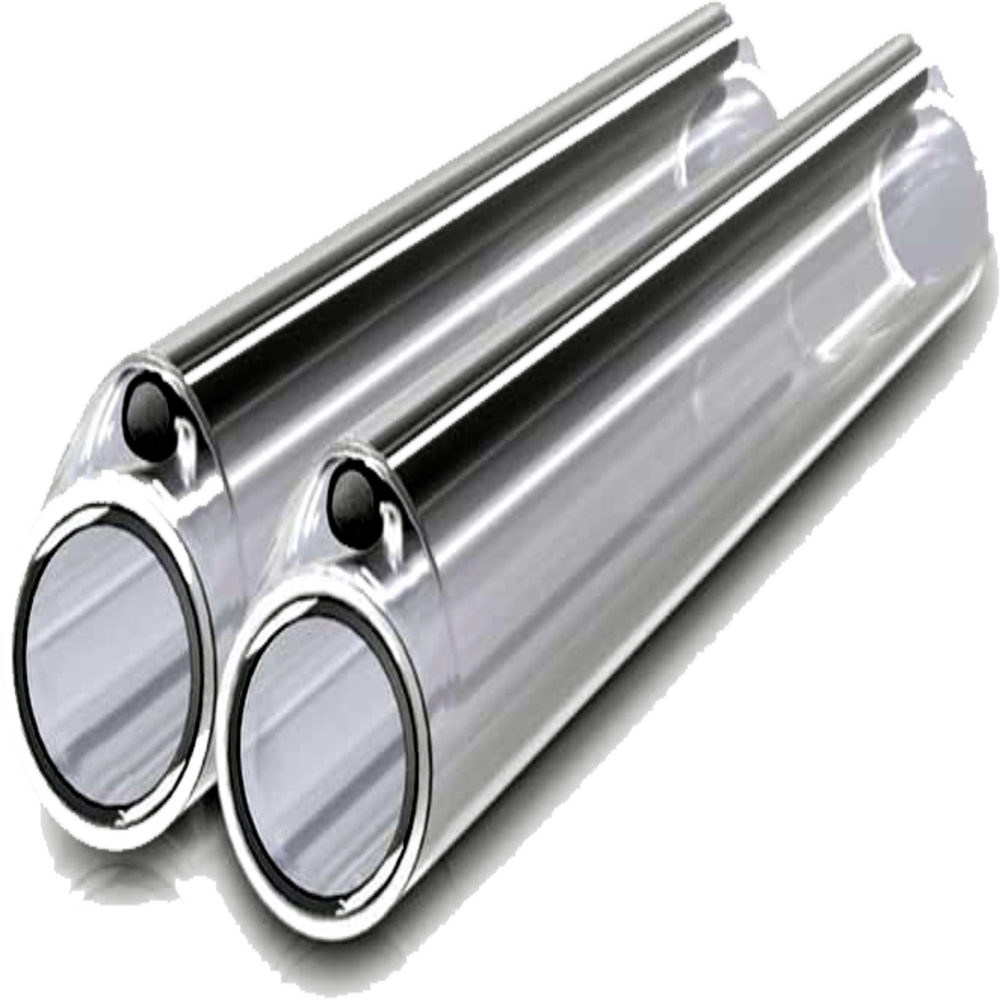

Optic Fiber Protective Sleeve

About Optic Fiber Protective Sleeve

1.General Overview

• Product Name: Fiber Optic Protection Sleeve

• Model Number: 60MM

• Application: Designed to protect fiber optic cables, connectors, and splices from mechanical stress, environmental factors, and accidental damage.

• Key Features:

  • Durable and flexible material for easy installation.

  • Protects against bending, crushing, and abrasion.

  • Heat-resistant and flame-retardant properties.

  • Suitable for indoor and outdoor use.

---

2.Material Specifications

• Material:

  • High-quality heat-shrinkable tubing (polyolefin or similar).

  • High Quality SS ( stainless-steel )

• Flame Rating:

  • Flame-retardant (compliant with IEC 60332-1).

• Operating Temperature:

  • -40C to +125C (continuous).

  • Up to +150C (short-term).

• Environmental Resistance:

  • UV-resistant for outdoor use.

  • Resistant to water, oil, and chemicals.

---

3.Mechanical Specifications

• Diameter (Before Shrinking):

  • Available in various sizes (e.g., 40mm, 60mm, 70mm) to accommodate different cable diameters.

• Diameter (After Shrinking):

  • Shrinks to approximately 50% of the original diameter (e.g., 3mm 1.5mm).

• Wall Thickness:

  • Typical: 0.8 mm to 1.2 mm (depending on size).

• Tensile Strength:

  • 10 MPa.

• Elongation at Break:

  • 200%.

---

4.Installation Specifications

• Shrinking Temperature:

  • 90C to 120C (using a heat gun or oven).

• Shrinking Ratio:

  • 2:1 (standard), customizable to 3:1 or 4:1.

• Installation Tools:

  • Heat gun or oven for shrinking.

  • Scissors or cutting tool for trimming.

---

5.Performance Specifications

• Abrasion Resistance:

  • High resistance to wear and tear.

• Bend Radius Protection:

  • Protects fiber optic cables from excessive bending.

• Crush Resistance:

  • Provides mechanical protection against crushing forces.

---

6.Safety and Compliance

• Safety Standards:

  • Compliant with IEC 60332-1 (Flame Retardant).

• Environmental Compliance:

  • RoHS compliant (Restriction of Hazardous Substances).

• Outdoor Use:

  • UV-resistant for long-term outdoor exposure.

---

7.Ordering Information

• Base Unit: Fiber Optic Protection Sleeve (standard size and length).

•
