DC TRANSMITTER BATTERY BACK-UP : OV-5050

Name: DC TRANSMITTER BATTERY BACK-UP : OV-5050
Brand: Mohan Electronics & Systems
Price: 5500.0 INR
Availability: InStock

Price 5500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

DC TRANSMITTER BATTERY BACK-UP : OV-5050 Specification

Connectivity Type
Wired Terminal Connections

Range
Suitable for up to 50 meters cable length

Features
LED Status Indicator, Short Circuit Protection

Size
Standard

Model
OV-5050

Interface Type
Screw Terminal Block

Operating Temperature
0C to 55C

Battery Backup
Up to 8 Hours (depending on load) Hours

Power Supply
230V AC, 50Hz Input

Mounting Type
Wall / Panel Mount

Shelf Life
Up to 2 years (recommended periodic testing) Years

Frequency
50 Hz / 60 Hz Compatible Hertz (HZ)

Product Type
DC Transmitter Battery Back-Up

Application
Industrial DC Transmitter Power Supply Backup

Dimension (L*W*H)
110 mm x 85 mm x 55 mm Millimeter (mm)

Material
ABS Plastic Housing

Weight
Approx. 320 g Grams (g)

DC TRANSMITTER BATTERY BACK-UP : OV-5050 Trade Information

Minimum Order Quantity
1 Piece

FOB Port
DELHI

Payment Terms
Cash in Advance (CID)

Supply Ability
25 Pieces Per Month

Delivery Time
5 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
8x7x1.6 INCH

Main Export Market(s)
Asia

Main Domestic Market
All India

About DC TRANSMITTER BATTERY BACK-UP : OV-5050

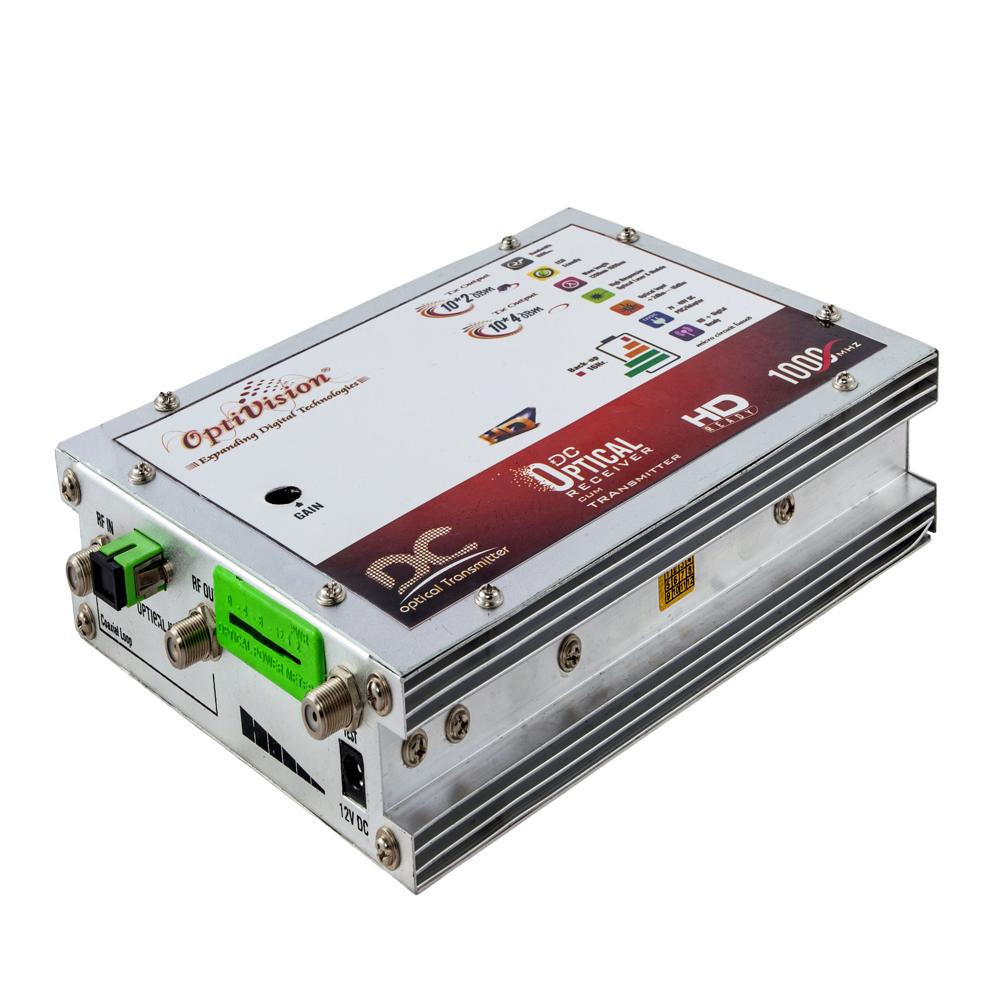

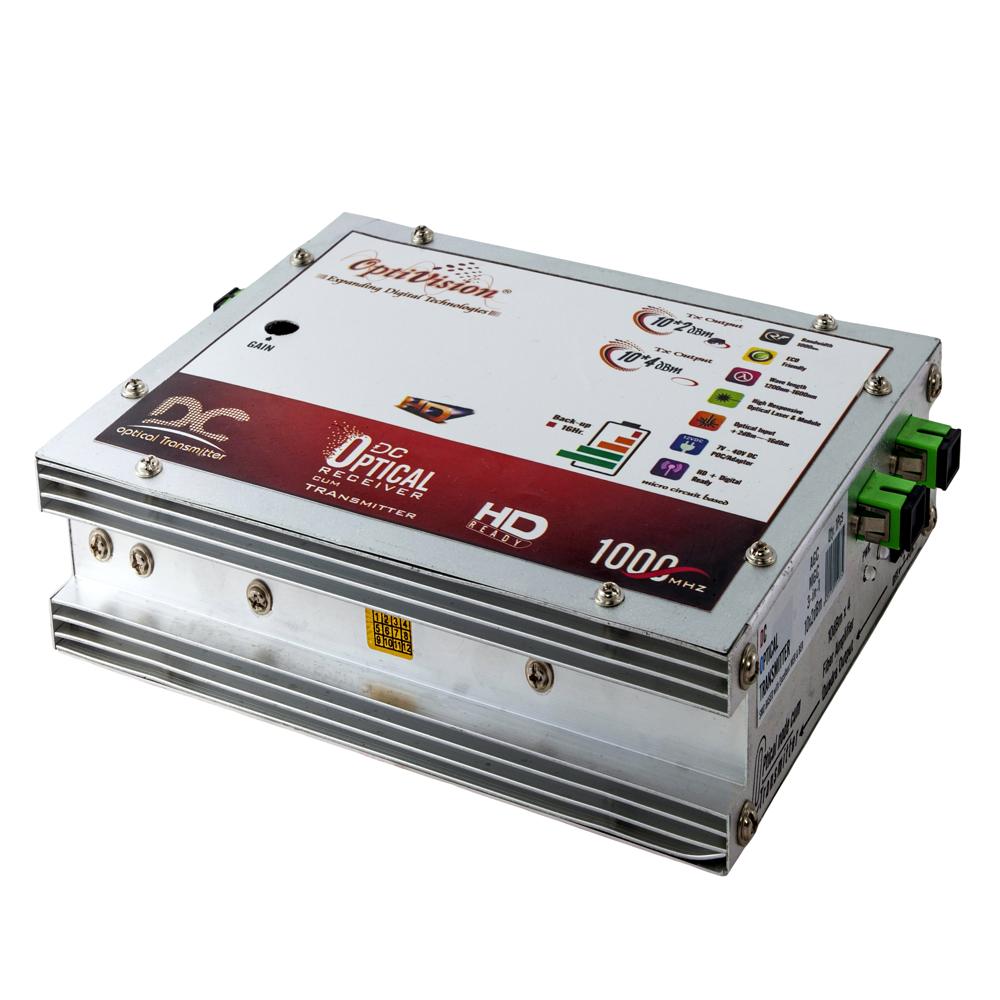

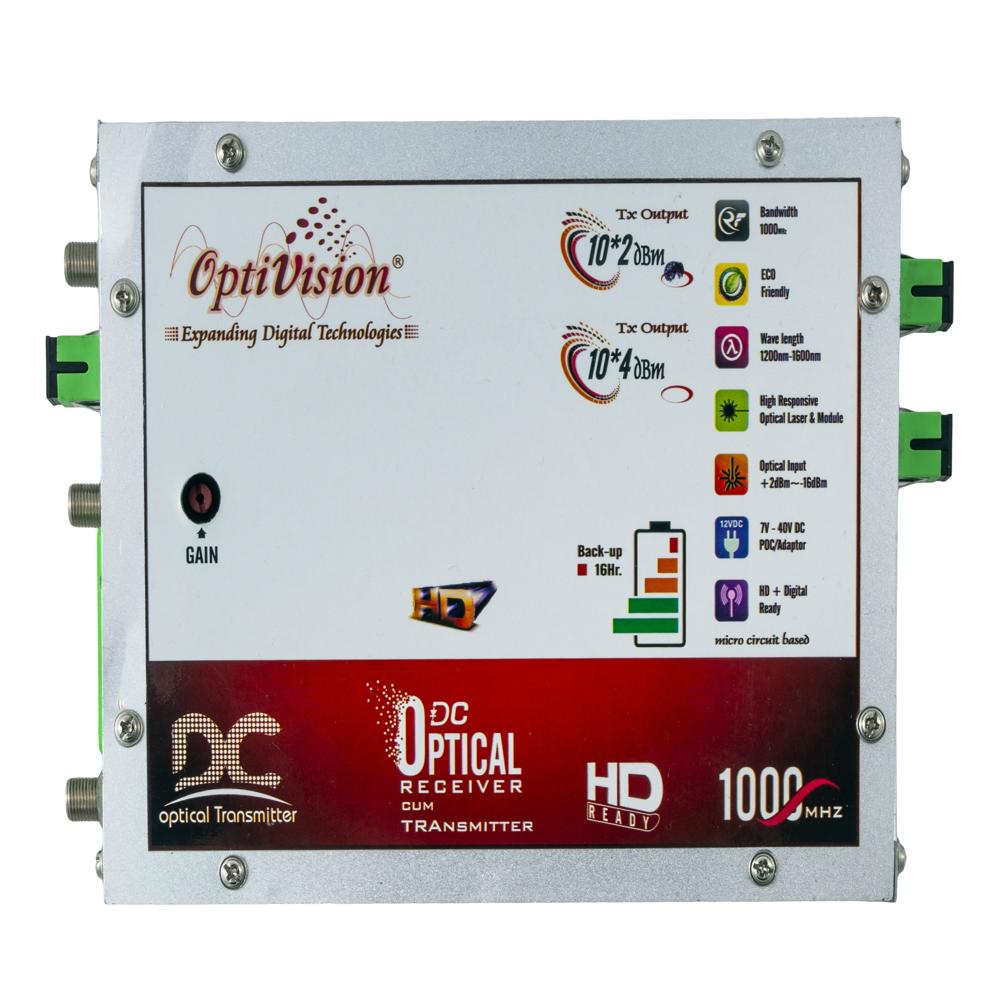

Optivision Model no.5050 is 3-in-1 Optical Transmitter cum optical receiver. Its give both RF as well as optical output. The Transmitter function in this model is designed to give 10dBmx2out optical output where network have only lower optical there. This model is economical for small and big networks. The transmission of optic signal at 1310nm and (optional)1550nm for carry multi analog and digital channels CATV transmission. This optivision transmitter have AGC & MGC (manual gain control) for easy to handle RF input signal. The optivision transmitter is constructed with SMD technology to give high quality enable it to meet or exceed its performance. Its is operated with 12VDC power supply and have very low power consumption.

Technical Specifications: DC Transmitter with Battery Backup (3-in-1)

Model No.: OV-5050
Brand: OPTIVISION

1. General Overview

Product Name: DC Transmitter with Battery Backup (3-in-1)
Model Number: OV-5050
Description: A versatile 3-in-1 DC transmitter with a built-in 15-hour battery backup system. The device supports multiple signal conversion modes:
1. Optical In and Optical Out
2. RF In and Optical Out
3. Optical In and RF Out
The transmitter operates on a 12V DC power adapter and delivers a stable RF output power of 10dBm. It features four output ports for flexible connectivity.

2. Electrical Specifications

Input Voltage: 12V DC (Range: 11.5V - 12.5V DC)
Power Consumption: 3W (typical)
RF Output Power: 10dBmx2 (1dBm)
Frequency Range: 40 MHz - 1000 MHz (Customizable upon request)
Output Impedance: 75 Ohms
Output Ports: SC-APC
Battery Backup: 15 hours (under full load)
Battery Type: Rechargeable Lithium-ion (Li-ion)
Battery Capacity: 2600mAh
Charging Time: 6 hours (from 0% to 100%)
Battery Life: 750 charge cycles (minimum)

3. Signal Conversion Modes

Optical In and Optical Out:
- Optical Input: SC/APC connector
- Optical Output: SC/APC connector
- Wavelength: 1310nm or 1550nm (selectable)
RF In and Optical Out:
- RF Input: F Female ( 75 ohms )
- Optical Output: SC/APC connector
- Wavelength: 1310nm or 1550nm (selectable)
- Optical Power: +10dBm x 2
Optical In and RF Out:
- Optical Input: SC/APC connector
- RF Output: F Female ( 75 ohms )
- RF Output Power: 98db

4. Environmental Specifications

Operating Temperature: -20C to +60C
Storage Temperature: -30C to +70C
Humidity: 5% to 95% (non-condensing)
Ingress Protection (IP) Rating: IP54 (Dust and splash resistant)

5. Mechanical Specifications

Dimensions: 160mm x 110mm x 55mm (L x W x H)
Weight: 550g (including battery)
Enclosure Material: Aluminum alloy (anodized finish)
Mounting: Wall-mountable or desktop placement

6. Performance Specifications

Signal Stability: 0.5dBm over the entire operating temperature range
Harmonic Distortion: -30dBc
Spurious Emissions: -40dBc
Output Port Isolation: 20dB between ports

7. Battery Backup System

Backup Time: 15 hours (at full load)
Battery Management System (BMS): Overcharge, over-discharge, and short-circuit protection
Battery Indicator: LED indicators for battery status (Green: Charged, Red: Low battery)
Automatic Switchover: Seamless transition to battery power during power failure

8. Connectivity

Input Power Connector: DC Jack (5.5mm x 2.1mm)
Optical Connectors: SC/APC (Input and Output)
RF Connectors: Female 75ohms

9. Accessories

Included Accessories:
- 1 x 12V DC Power Adapter

10. Warranty and Support

Warranty Period: 1 years (limited warranty)

Reliable Industrial Power Backup

The OV-5050 is engineered to provide dependable DC power backup for mission-critical industrial transmitter systems. Designed to operate efficiently across a wide input voltage range, it keeps sensitive equipment powered during outages, minimizing downtime. Its rugged ABS plastic housing and IP20 rating safeguard the internal components, ensuring performance even in demanding settings.

Intelligent Protection and Monitoring

Integrated protections-including over voltage, over current, and reverse polarity-effectively shield both the device and connected transmitters. Users can monitor operational status with intuitive LED indicators, showing mains, battery, and fault conditions at a glance. This allows for prompt troubleshooting and system assurance.

Easy Installation and Versatile Usage

The OV-5050 features wired screw terminal block connections for secure setup and is adaptable to wall or panel mounting, catering to various industrial layouts. With support for cable lengths up to 50 meters and efficiency over 85% at full load, it delivers flexible placement alongside reliable power delivery.

FAQ's of DC TRANSMITTER BATTERY BACK-UP : OV-5050:

Q: How does the OV-5050 DC Transmitter Battery Back-Up operate during a power outage?

A: When mains power fails, the OV-5050 automatically switches to battery mode, providing a regulated 12V DC output to keep connected transmitters running. The backup period can extend up to 8 hours, depending on the load and the supported 12V, 7Ah battery.

Q: What types of devices can be powered with the OV-5050 unit?

A: This unit is designed primarily for industrial DC transmitters but can support any compatible 12V DC devices within its rated capacity. It can supply single or multiple transmitters as long as they fall within the power and current specifications.

Q: When should I perform maintenance or testing on the OV-5050 system?

A: For optimal performance, periodic battery testing is recommended-ideally every 6 months. Routine inspections ensure the battery and unit maintain their efficiency and extend the recommended shelf life of up to 2 years.

Q: Where can the OV-5050 be installed safely within my facility?

A: With its IP20-rated ABS housing, the OV-5050 should be installed indoors on a wall or panel mount away from moisture and dust. Ensure adequate ventilation and access to the terminal blocks for wiring during installation.

Q: What protection features does the OV-5050 provide for connected equipment?

A: The OV-5050 is equipped with over voltage, over current, reverse polarity, and short circuit protections, helping safeguard both the power supply and any connected transmitters from accidental electrical faults.

Q: How does the LED status indicator system benefit daily operation?

A: The clearly labeled LED indicators display the status of mains power, battery operation, and faults, allowing operators to monitor system health at a glance and respond quickly to any detected issues.
