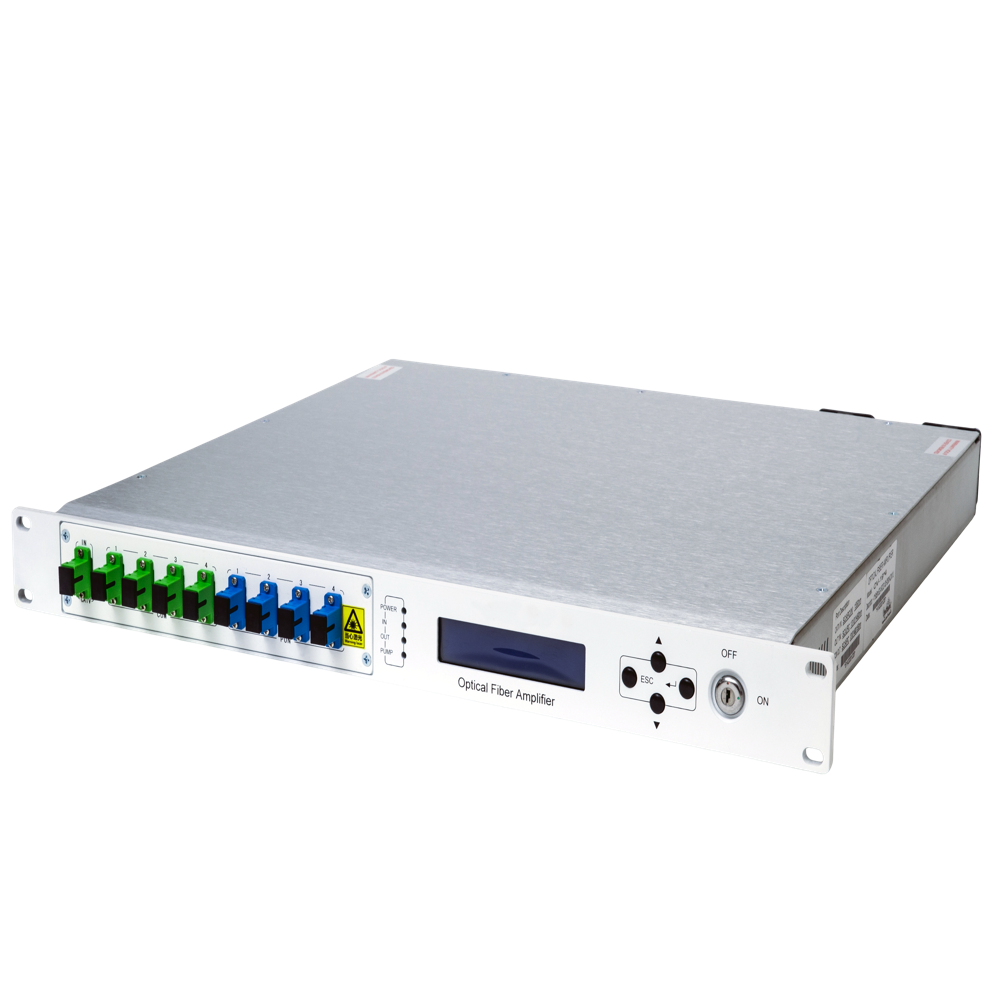

PON WDM EDFA : 19x4

2. Optical Specifications

• Wavelength Range: 1525 nm to 1565 nm (C-band)

• Number of Channels: 19

• Channel Spacing: 100 GHz (ITU-T Grid)

• Input Power Range: -30 dBm to +10 dBm

• Output Power Range: +18.8 dBm to +19.8 dBm per channel

• Gain: 20 dB to 30 dB (adjustable)

• Noise Figure: 5.5 dB

• Polarization Dependent Loss (PDL): 0.2 dB

• Polarization Mode Dispersion (PMD): 0.1 ps

• Pump Laser: JDSU High-Power Pump Laser (980 nm or 1480 nm)

•


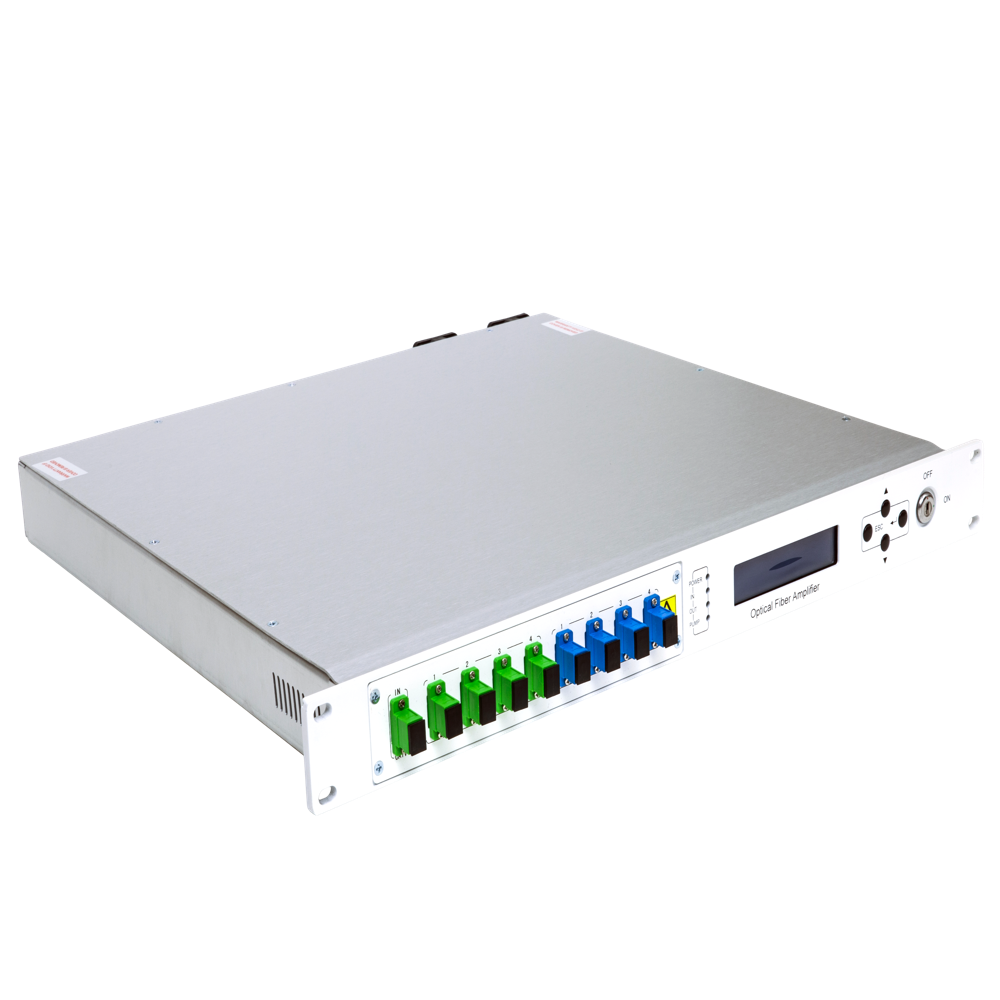

3. Input/Output Ports

• Input Ports: 2 (Dual Input for redundancy)

• Output Ports: 4 (19 channels per port)

• Connector Type: SC/APC or LC/APC (optional)

• Return Loss: 45 dB

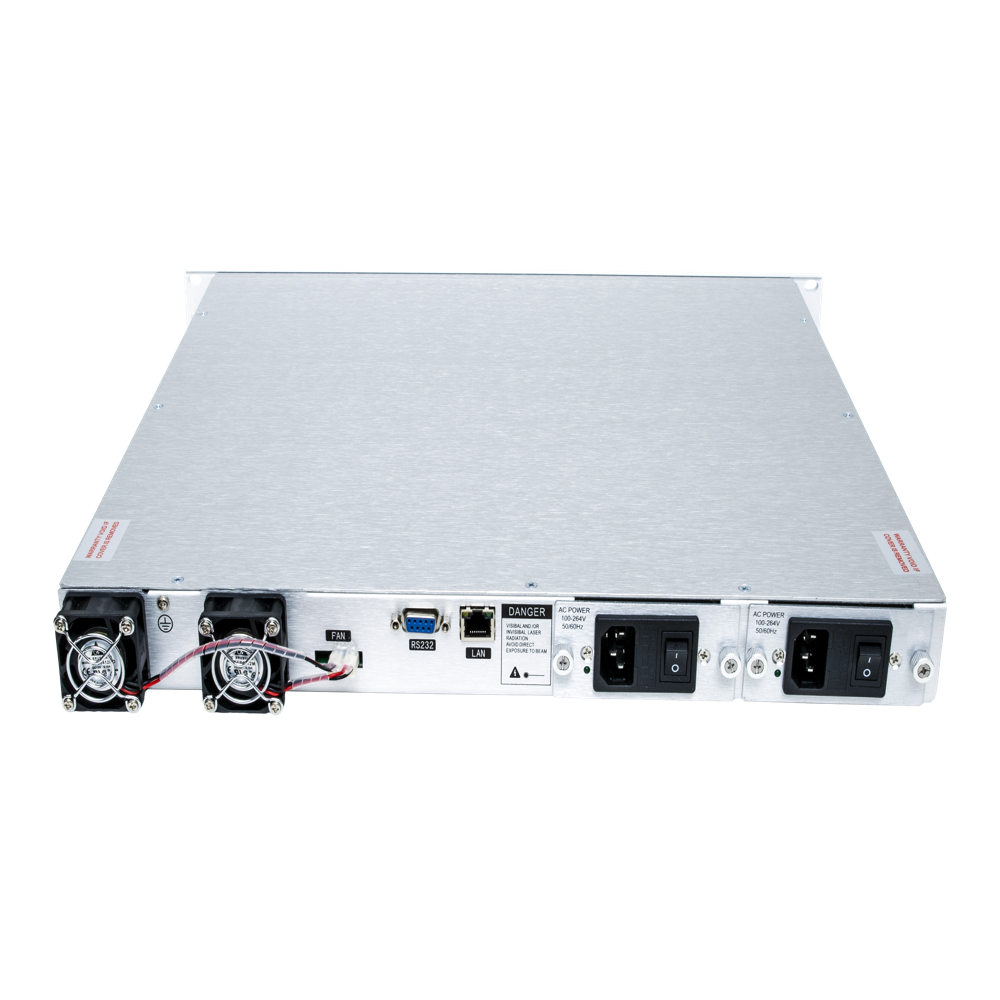

4. Electrical Specifications

• Power Supply Voltage: Dual Supply, 100-240 VAC, 50/60 Hz

• Power Consumption: 50 W

• Redundancy: Dual Power Supply for high availability

• Operating Temperature: 0C to +50C

• Storage Temperature: -40C to +85C

• Humidity: 5% to 95% (non-condensing)

5. Pump Laser Specifications

• Pump Laser Manufacturer: JDSU (Lumentum)

• Pump Wavelength: 980 nm or 1480 nm (selectable)

• Pump Power: 300 mW to 500 mW (depending on configuration)

• Pump Redundancy: Dual Pump Configuration (optional)

• Reliability: High MTBF (Mean Time Between Failures) as per JDSU standards

6. Control and Monitoring

• Monitoring Interface: RS-232, RS-485, or Ethernet (SNMP)

• Alarm Indicators: LED indicators for Power, Signal, and Fault conditions

• Remote Monitoring: Supported via SNMP or Web Interface

• Software Control: GUI-based software for configuration and monitoring

• Pump Laser Monitoring: Real-time pump power and temperature monitoring

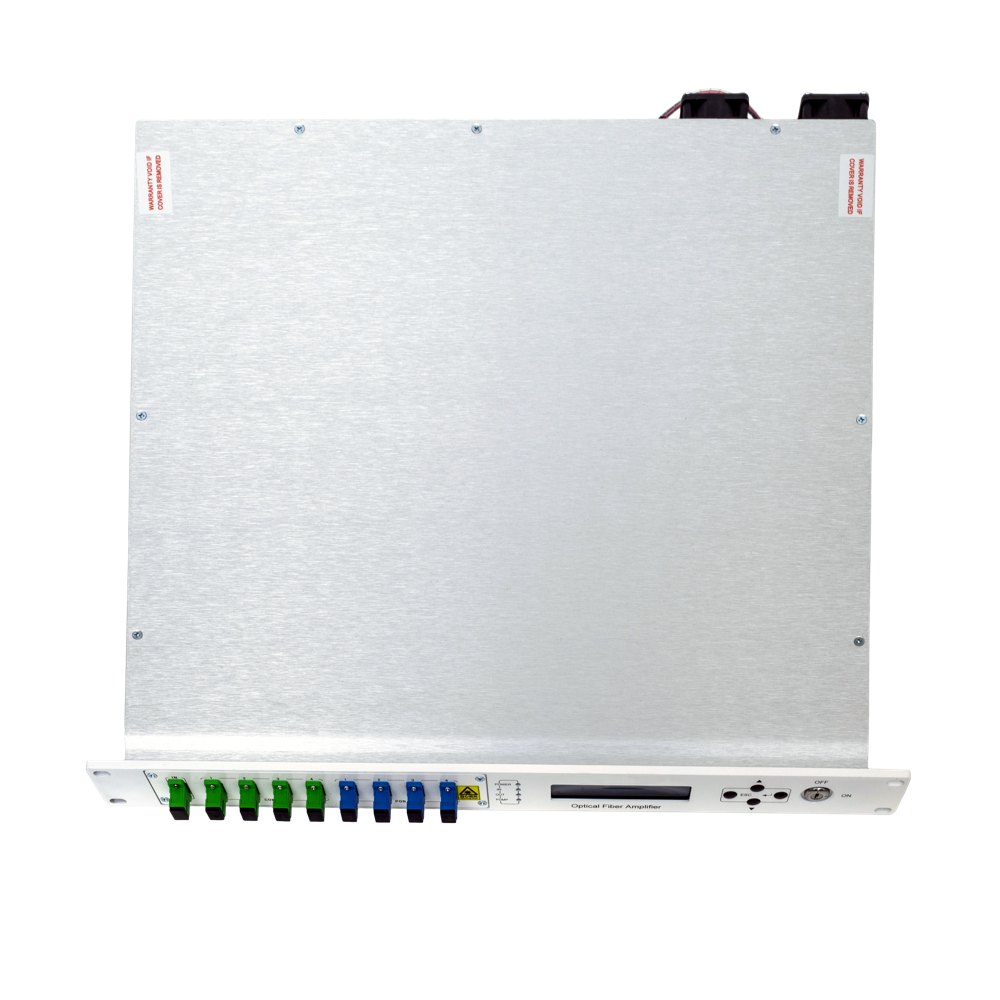

7. Mechanical Specifications

• Dimensions: 19-inch rack-mountable, 1U or 2U height

• Weight: 5 kg

• Cooling: Fanless design or optional fan cooling

• Enclosure: Metal casing with EMI shielding

8. Compliance and Standards

• Safety Standards: IEC 60825-1, FDA 21 CFR 1040.10

• EMC Standards: FCC Part 15, CE Marking

• Telecom Standards: ITU-T G.652, G.655, GR-468-CORE

• Pump Laser Compliance: JDSU quality and reliability standards

10. Optional Features

• Tunable Filters: For dynamic channel selection

• Advanced Diagnostics: Real-time performance monitoring

• Redundant Cooling: Dual fans for high-temperature environments

• Dual Pump Configuration: Redundant JDSU pumps for enhanced reliability

11. Ordering Information

• Model Number: OV-19x4-DUAL-JDSU

• Optional Accessories: Rack mount kit, additional power supply, monitoring software, dual pump configuration
