Technical Specification for CATV Hybrid Amplifier
Model No.: OV-409

1. General Description

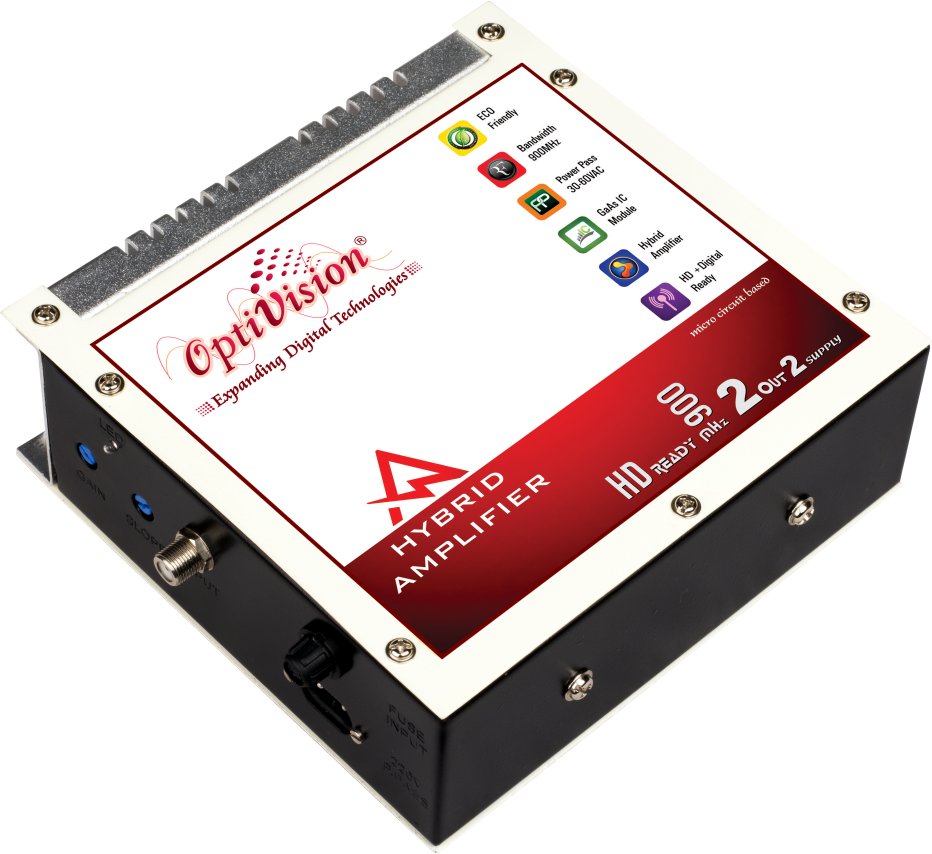

The OV-409 is a high-performance CATV hybrid amplifier designed for use in cable television networks. It features dual output ports, a built-in test point, and a robust metal housing for durability. The amplifier supports both AC power operation (200V-240VAC) and power pass operation (30VAC-60VAC), making it versatile for various network configurations.

2. Key Features

• Dual Output Ports: Allows for signal distribution to two separate lines.

• Test Point: Integrated test point for easy signal monitoring and troubleshooting.

• Metal Housing: Durable and shielded metal casing for enhanced protection and EMI/RFI interference reduction.

• Wide Power Input Range: Supports both high-voltage AC (200V-240VAC) and low-voltage power pass (30VAC-60VAC) operation.

• High Gain and Low Noise: Ensures optimal signal quality and minimal signal degradation.

3. Electrical Specifications

4. Mechanical Specifications

5. Environmental Specifications

6. Applications

• Cable television (CATV) distribution networks.

• Broadband communication systems.

• Signal amplification in multi-dwelling units (MDUs).

7. Installation and Maintenance

• Ensure proper grounding of the amplifier to avoid electrical hazards.

• Use appropriate connectors and cables to maintain signal integrity.

• Regularly monitor the test point for signal quality and performance.

8. Package Contents

• 1 x OV-409 CATV Hybrid Amplifier

• 1 x Main Cords

9. Warranty

• 1-year limited warranty against manufacturing defects.
