DC HYBRID AMPLIFIER : OV-908

Name: DC HYBRID AMPLIFIER : OV-908
Brand: Mohan Electronics & Systems
Price: 625.0 INR
Availability: InStock

Price 625.0 INR/ Piece

Get a Price/Quote

MOQ : 5 Pieces

DC HYBRID AMPLIFIER : OV-908 Specification

Features
Highly efficient

Size
Standard

Frequency
47 - 1000 Megahertz (MHZ)

Power Supply
DC

Product Type
HYBRID AMPLIFIER

Application
Telecommunication

DC HYBRID AMPLIFIER : OV-908 Trade Information

Minimum Order Quantity
5 Pieces

FOB Port
DELHI

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
3 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
5x4.7x1.6 INCH

Main Export Market(s)
Asia

Main Domestic Market
All India

About DC HYBRID AMPLIFIER : OV-908

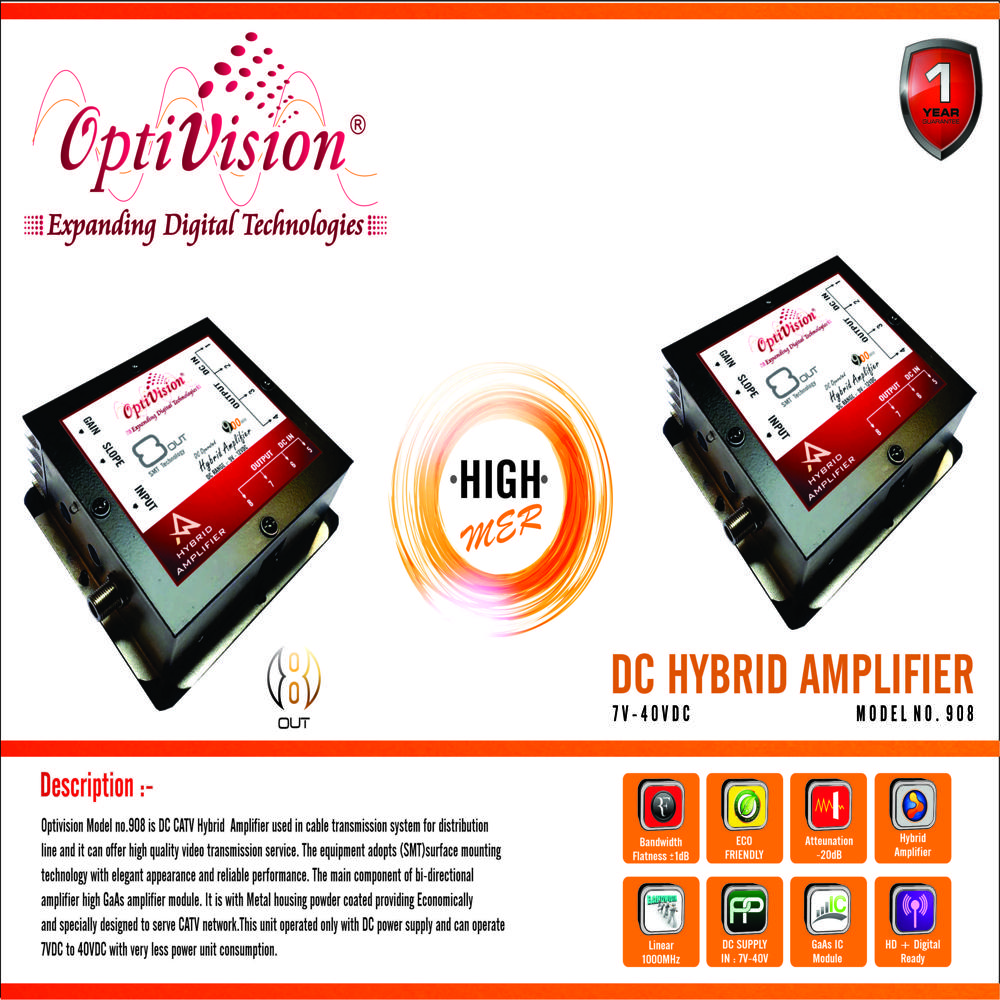

Optivision Model no.908 is DC CATV Hybrid Amplifier used in cable transmission system for distribution line and it can offer high quality video transmission service. The equipment adopts (SMT)surface mounting technology with elegant appearance and reliable performance. The main component of bi-directional amplifier high GaAs amplifier module. It is with Metal housing powder coated providing Economically

and specially designed to serve CATV network.This unit operated only with DC power supply and can operate 7VDC to 40VDC with very less power unit consumption.

Technical Specification for CATV DC Hybrid Amplifier
Model No.: OV-908

1. General Description

The OV-908 is a high-performance CATV DC hybrid amplifier designed for use in cable television networks, particularly in environments where DC power or Power over Coax (POC) is required. It supports a wide range of DC power inputs, including solar power and power adapters, making it ideal for remote or off-grid installations. The amplifier features eight output ports, enabling extensive signal distribution, and is housed in a durable metal casing for reliable performance in harsh conditions.

2. Key Features

Eight Output Ports: Enables signal distribution to multiple lines, ideal for large-scale networks.
Metal Housing: Robust and shielded metal casing for enhanced durability and EMI/RFI interference reduction.
Wide DC Power Range: Operates on 7V-40VDC, including POC (Power over Coax) and solar power.
High Gain and Low Noise: Ensures optimal signal quality and minimal signal degradation.
Flexible Power Options: Compatible with DC power adapters, solar power, and POC (35V).

3. Electrical Specifications

Parameter	Specification
Frequency Range	47 MHz - 1000 MHz
Gain	24 dB 1 dB (typical)
Noise Figure	7 dB
Output Level	98 dBV (typical)
Return Loss	16 dB
CTB (Composite Triple Beat)	68 dB (at 114 dBV output level)
CSO (Composite Second Order)	65 dB (at 114 dBV output level)
DC Power Input	7V - 40VDC
POC (Power over Coax)	35VDC
Current Consumption	0.5 A

4. Mechanical Specifications

Parameter	Specification
Housing Material	Metal housing
Dimensions	150 mm (L) x 100 mm (W) x 50 mm (H)
Weight	0.8 kg (approx.)
Connector Type	F-type female connectors (input/output)

5. Environmental Specifications

Parameter	Specification
Operating Temperature	-20C to +60C
Storage Temperature	-30C to +70C
Humidity	5% to 95% (non-condensing)

6. Applications

Cable television (CATV) distribution networks.
Broadband communication systems.
Remote or off-grid installations using solar power.

7. Installation and Maintenance

Ensure proper grounding of the amplifier to avoid electrical hazards.
Use appropriate connectors and cables to maintain signal integrity.
For solar power installations, ensure the solar panel and battery system are compatible with the amplifier's DC input range.
Regularly monitor the amplifier's performance to ensure optimal signal quality.
