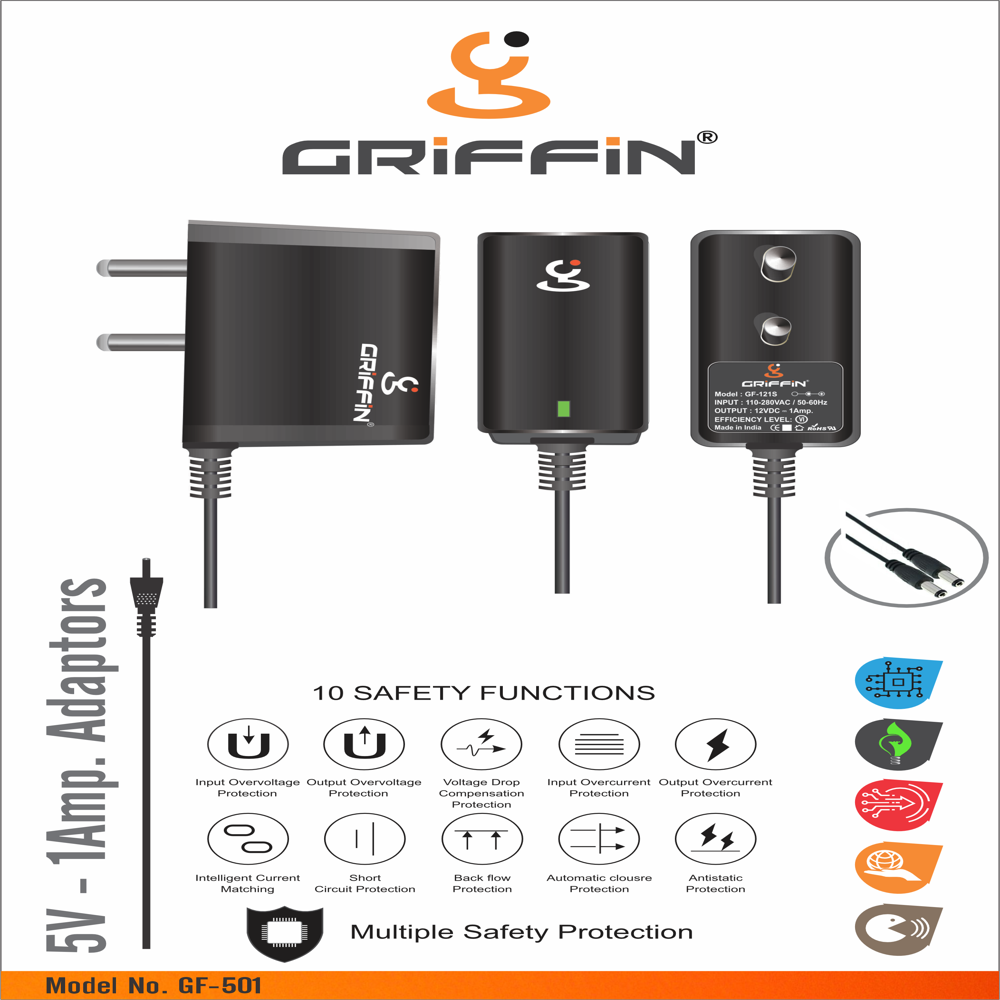

5 V-1 A Power Adaptor : GF-501

About 5 V-1 A Power Adaptor : GF-501

Technical Specification: 5V-1A Power Adapter (SMD-Based Circuit)

1. General Overview

• Product Name: 5V-1A Power Adapter

• Model Number: GF-501

• Description: A compact, sleek, and efficient 5V-1A power adapter designed with an SMD-based circuit for enhanced reliability and performance. The adapter features a unique, modern housing design, making it suitable for a wide range of low-power electronic devices.

2. Electrical Specifications

• Input Voltage: 100-240V AC (50/60Hz)

• Output Voltage: 5V DC (5%)

• Output Current: 1A (1000mA)

• Power Rating: 5W

• Efficiency: 90% (at full load)

• Ripple and Noise: 100mV (p-p)

• Load Regulation: 5%

• Line Regulation: 2%

• Short-Circuit Protection: Yes

• Over-Current Protection: Yes

• Over-Voltage Protection: Yes

• Operating Frequency: 50-60Hz

3. Mechanical Specifications

• Dimensions: 60mm x 35mm x 25mm (L x W x H)

• Weight: 50g (approx.)

• Housing Material: Flame-retardant ABS plastic (UL94 V-0 rated)

• Color: Black (sleek matte finish)

• Cable Length: 1.5 meters (5 feet)

• Output Connector: USB-A (standard)

• Input Plug Type: US/EU/UK/AU (configurable based on region)

4. Thermal and Environmental Specifications

• Operating Temperature: 0C to +40C

• Storage Temperature: -20C to +85C

• Humidity: 5% to 95% (non-condensing)

• Ingress Protection (IP) Rating: IP20 (Indoor use only)

5. Design Features

• SMD-Based Circuit: Compact, lightweight, and highly reliable.

• Sleek Housing: Unique, modern design with rounded edges for aesthetic appeal.

• LED Indicator: Built-in power-on indicator (blue LED).

• Compact Size: Space-saving design for easy portability and storage.

• Durable Construction: Robust housing for long-term durability.

6. Applications

• Charging and powering low-power electronic devices such as:

  • Smartphones, tablets, and wearables

  • IoT devices and sensors

  • Bluetooth headphones and speakers

  • USB-powered gadgets and accessories

7. Warranty and Support

• Warranty Period: 1 year (limited warranty)
